% Skills Assessment - Chap 7

P7.1 DC motor

clear variables
G=zpk([],[0 -10],1);
Ts=.01;
Gz=c2d(G,Ts);
disp('Gain margin:')
Kmax=margin(Gz)
disp('Impulse response:')
impulse(Gz,10*Ts)'
Gain margin:
Kmax =
   2.0339e+03
Impulse response:
ans =
  Columns 1 through 7
         0    0.0048    0.0139    0.0221    0.0295    0.0362    0.0423
  Columns 8 through 11
    0.0478    0.0527    0.0572    0.0613

P7.2 Flexible beam

G=tf(100,[1 1 100]);
Ts=.01;
Gz=c2d(G,Ts);
disp('Gain margin:')
Kmax=margin(Gz)
disp('Impulse response:')
impulse(Gz,10*Ts)'
Gain margin:
Kmax =
    2.0058
Impulse response:
ans =
  Columns 1 through 7
         0    0.4979    1.4822    2.4420    3.3679    4.2511    5.0833
  Columns 8 through 11
    5.8567    6.5641    7.1992    7.7565

P7.3 Transfer function

G=zpk([-3],[0 -1 -2],1);
Ts=.1;
Gz=c2d(G,Ts);
disp('Gain margin:')
Kmax=margin(Gz)
disp('Impulse response:')
impulse(Gz,10*Ts)'
Gain margin:
Kmax =
    7.1207
Impulse response:
ans =
  Columns 1 through 7
         0    0.0499    0.1489    0.2455    0.3387    0.4278    0.5123
  Columns 8 through 11
    0.5920    0.6666    0.7363    0.8011

P7.4 Automobile model

G=tf([28 120],[1 7 14]);
Ts=.1;
Gz=c2d(G,Ts);
disp('Gain margin:')
Kmax=margin(Gz)
disp('Impulse response:')
impulse(Gz,10*Ts)'
Gain margin:
Warning: The closed-loop system is unstable.
Kmax =
    0.7173
Impulse response:
ans =
  Columns 1 through 7
         0   24.4349   18.2327   13.3382    9.5802    6.7606    4.6876
  Columns 8 through 11
    3.1916    2.1311    1.3924    0.8870

P7.5 Automobile model

for k=0.5*Kmax
    disp('K='), disp(k)
    T=feedback(k*G,1);
    disp('Pulse transfer function:')
    Tz=feedback(k*Gz,1)
    kp=k*dcgain(Gz);
    disp('Steady-state error:')
    estep=1/(1+kp)
    disp('Step response:')
    step(Tz, T)
    legend('discrete','continuous')
end
K=
    0.3587
Pulse transfer function:

Tz =

     0.8764 z - 0.5704
  ------------------------
  z^2 - 0.5207 z - 0.07385

Sample time: 0.1 seconds
Discrete-time transfer function.

Steady-state error:
estep =
    0.2454

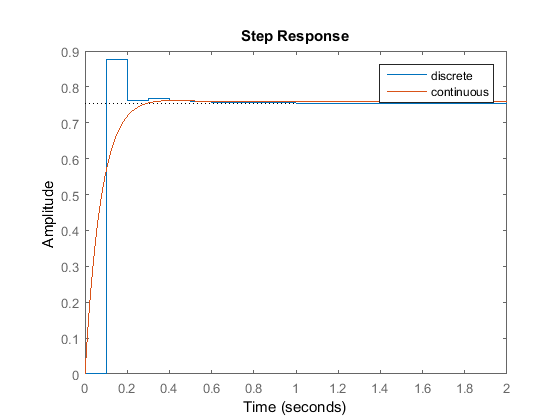

Step response:

P7.6 Human postural dynamics

G=tf([10],[1 0 -10]);
Ts=.1;
disp('Pulse transfer function:')
Gz=c2d(G,Ts)
disp('Impulse response:')
impulse(Gz,10*Ts)'
Pulse transfer function:

Gz =

  0.05042 z + 0.05042
  -------------------
   z^2 - 2.101 z + 1

Sample time: 0.1 seconds
Discrete-time transfer function.

Impulse response:
ans =
  Columns 1 through 7
         0    0.5042    1.5634    2.7802    4.2774    6.2059    8.7602
  Columns 8 through 11
   12.1979   16.8655   23.2338   31.9449
