```% Skills Assessment - Chap 8
```

## P8.1 PID controller emulation

```clear variables
Ts=0.1;
kp=20; kd=10; ki=1;
I=tf(1,[1 0]);
Id=c2d(I,Ts,'impulse');
Kz=kp+kd/Id+ki*Id;
disp('PID controller emulation:')
tf(Kz)
disp('Controller input/output:')
Ad=[0 1; 0 0]; Bd=[Ts; 1];
Cd=[ki -kd/Ts]; Dd=kp+ki*Ts+kd/Ts;
e=rand(1,10); x=rand(2,1); u=Cd*x+Dd*e;
for i=1:length(e), xy=f1(x,e(i)); u(i+1)=xy(3); x=xy(1:2); end
e,u
```
```PID controller emulation:

ans =

12.01 z^2 - 22 z + 10
---------------------
0.1 z^2 - 0.1 z

Sample time: 0.1 seconds
Discrete-time transfer function.

Controller input/output:
e =
Columns 1 through 7
0.7350    0.9706    0.8669    0.0862    0.3664    0.3692    0.6850
Columns 8 through 10
0.5979    0.7894    0.3677
u =
Columns 1 through 7
79.8078   79.8078   43.2333    7.8905  -75.2790   36.2611    7.8200
Columns 8 through 11
45.7554    3.7476   35.7533  -34.1044
```

## P8.2 Controller emulation

```G=tf(1,[1 0 0]);
Ts=.05;
Gz=c2d(G,Ts);
Gc=zpk([-.1 -1],[-.01 -6], 20);
disp('Controller emulation:')
disp('PZ matching')
Kz=c2d(Gc,Ts,'matched')
Tz1=feedback(Kz*Gz,1);
disp('Bilinear transform')
Kz=c2d(Gc,Ts,'tustin')
Tz2=feedback(Kz*Gz,1);
disp('ZOH')
Kz=c2d(Gc,Ts)
Tz3=feedback(Kz*Gz,1);

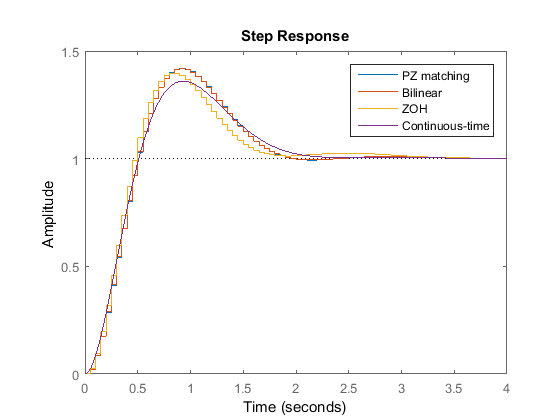

disp('Step response:')
T=feedback(Gc*G,1);
step(Tz1,Tz2,Tz3,T)
legend('PZ matching','Bilinear','ZOH', 'Continuous-time')
```
```Controller emulation:
PZ matching

Kz =

17.754 (z-0.995) (z-0.9512)
---------------------------
(z-1) (z-0.7408)

Sample time: 0.05 seconds
Discrete-time zero/pole/gain model.

Bilinear transform

Kz =

17.866 (z-0.995) (z-0.9512)
---------------------------
(z-1) (z-0.7391)

Sample time: 0.05 seconds
Discrete-time zero/pole/gain model.

ZOH

Kz =

20 (z-0.9949) (z-0.9574)
------------------------
(z-1) (z-0.7408)

Sample time: 0.05 seconds
Discrete-time zero/pole/gain model.

Step response:
```

## P8.3 Flexible beam

```G=tf(100,[1 1 100]);
disp('PID controller:')
K0=pid(1,1,1,.001);
Kpid=pidtune(G,K0);
Ts=.001;
Gz=c2d(G,Ts);
Kz=c2d(Kpid,Ts)
T=feedback(Kpid*G,1);
Tz=feedback(Kz*Gz,1);

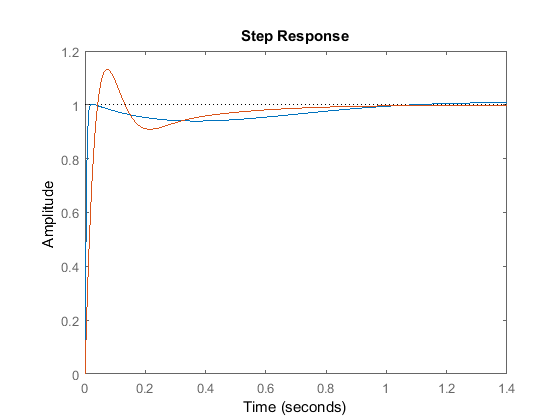

disp('Step response:')
step(Tz,T)
```
```PID controller:

Kz =

Ts               1
Kp + Ki * ------ + Kd * -----------
z-1         Tf+Ts/(z-1)

with Kp = 7.42, Ki = 27.3, Kd = 2.19, Tf = 0.00101, Ts = 0.001

Sample time: 0.001 seconds
Discrete-time PIDF controller in parallel form.

Step response:
```

## P8.4 Automobile

```disp('Automobile model:')
G=tf([28 120],[1 7 14]);
Ts=.01;
disp('Discrete-time model:')
Gz=c2d(G,Ts)
figure(1), rlocus(Gz), grid
k=2;
Tz=feedback(k*Gz,1);
T=feedback(k*G,1);

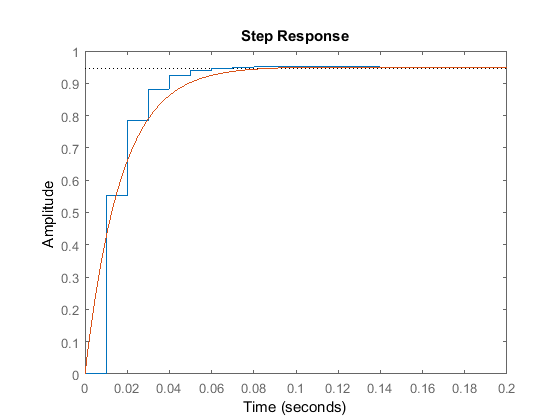

disp('Step response:')
figure(2), step(Tz,T)
```
```Automobile model:
Discrete-time model:

Gz =

0.2762 z - 0.2646
----------------------
z^2 - 1.931 z + 0.9324

Sample time: 0.01 seconds
Discrete-time transfer function.

Step response:
```

## P8.5 Dynamic system

```G=zpk([-3],[0 -1 -2],1);
Ts=.5;
Gz=c2d(G,Ts);

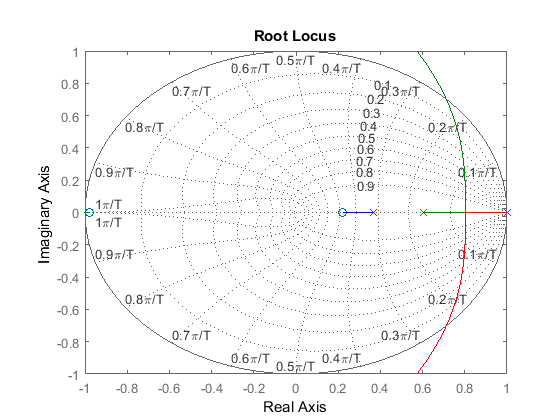

figure(1), rlocus(Gz), grid
axis([-1 1 -1 1])
k=.2;
disp('Discrete-time model:')
Tz=feedback(k*Gz,1)
T=feedback(k*G,1);

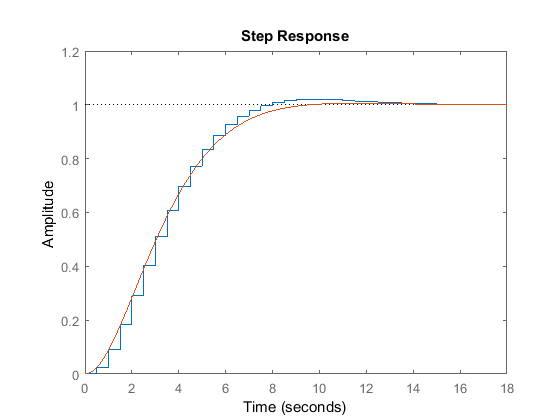

disp('Step response:')
figure(2), step(Tz,T)
```
```Discrete-time model:

Tz =

0.024218 (z-0.2218) (z+0.9794)
----------------------------------
(z-0.3449) (z^2 - 1.605z + 0.6623)

Sample time: 0.5 seconds
Discrete-time zero/pole/gain model.

Step response:
```

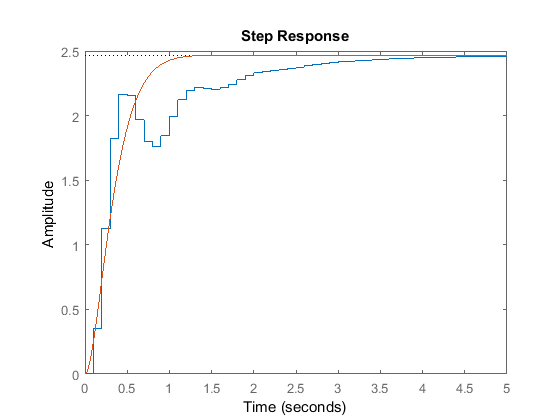

## P8.6 Human postural dynamics

```G=tf([10],[1 0 -10]);
Ts=.1;
disp('Discrete-time models:')
disp('Plant:')
Gz=c2d(G,Ts);
disp('Controller:')
```Discrete-time models:
